Jackoboard Aqua Line Easy 1200x900x40/25 LinearSKU: 4510707
£335.75 inc. VAT
The ultimate in linear wetroom solutions, achieve a stainless steel drain finish or tile finish with the unique double-sided option, suitable to timber and concrete installations.
- Additional information
- Wetroom FAQ
- Delivery Info

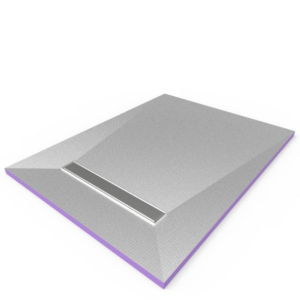

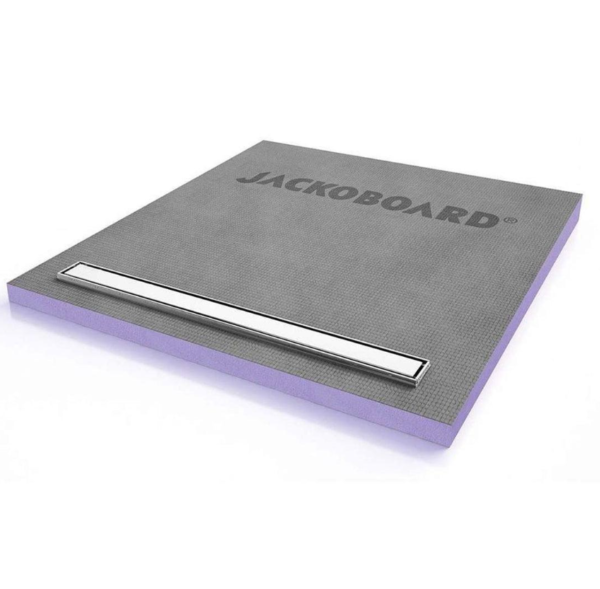

The ultimate in wet room flooring, the Jackoboard wet room shower tray floor former has all the properties required to make this one of the best wet room shower trays on the market!
- For use with Tiles Only
- Can be cut to size using a hand saw
- Required under boarding support if using on timber floors
- Use to create wetroom or enclosed shower area
- Can be installed in to timber or concrete floors
- Can be installed flush with existing floor boards
- Shower element with brushed stainless steel drain channel
- Drainage rate of up to 0.6 l/s
- Stainless steel bar can be inverted and tiled on the back
- Smooth, easy-clean surface with self-cleaning effect
- Low installation height
- Water trap height: 22 mm
These Jackoboard wet room shower trays are manufactured from a high compressive strength, waterproof extruded polystyrene core, which is coated on both sides with a highly polymer modified cement coating that has been reinforced with a glass fibre mesh ensuring your wet room shower tray is extra strong.
The wet room shower trays are designed for use in timber & concrete floors but only tiled finishes. By removing the existing floor boards and constructing a reinforcing platform between your floor joists to fully support the Shower Element it is possible to create a fully tile-able wet room floor.
The Jackoboard wet room shower tray can be easily trimmed to size on site with simple hand tools if necessary.
Timber Floor Installation
Jackoboard wetroom shower trays can be installed in to timber floors, for best results we recommend removing the existing floorboards to the size of the tray to enable flush fitting withing the room. Using Jackoboard wetroom shower trays on timber floors will require underboarding support between the joists as the tray is manufacturers from eXtruded Polystyrene.
Concrete Floor Installation
Jackoboard wetroom shower trays are specifically designed for installation in to concrete floor, however can also be used with timber floors. To achieve best results we recommend installing the wetroom shower tray flush with the floor, this is usually achieved by removing existing concrete flooring and installing the wetroom tray. Please note this tray cannot be used with vinyl flooring or wheelchair access.
Tile Backer Board Installation
We recommend that all wetrooms shower areas are installed using Tile Backer Board, This ensures that we wetroom area is fully waterproofed, Tile Backer Board replaces plasterboard and ensures a nice clean installation surface for tiles. We recommend using a minimum of 12mm Tile Backer Board for the walls.

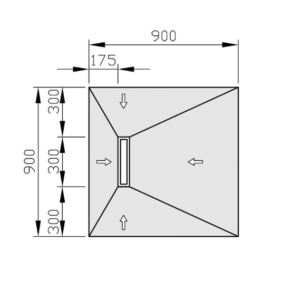

|Dimensions||900 x 900 x 30 mm|
eXtruded Polystyrene XPS
Concrete & Timber Floors
Glass Reinforced Plastic is much stronger than XPS which is eXtruded PolyStyrene, while XPS is cheaper to purchase in most cases GRP shower trays work out less expensive to install as they are self supporting and don't require extra materials for installation.
GRP Shower trays like Tough-X can have a finish of Tiles, Mosaics, Alto Style Flooring which covered pretty much every installation type. XPS can take tiles only due to load pointing, if the tile is to small the pressure can be transferred to the Wetroom Shower Tray and work lose.
If you are installing your wetroom shower tray upstairs the vast majority of UK builds will be timber floor and timber joists. Tough-X GRP are the best solution for this type of wetroom installation, Due to it be self supporting and not requiring any underboarding between installation times and materials are reduced.
